Ocean currents and layers and pressure

The ocean is made up of layers. The deeper layers have very high pressure. You can make an object sink or float by changing its density.

Like a cake the ocean has layers. The layers are often called zones. There are three main zones each called a pelagic zone. Pelagic means ‘the open sea’. The three zones are

  1. Epi-pelagic or sunlit zone
  2. Meso-pelagic or twilight zone
  3. Bathy-pelagic or midnight zone

The epi-pelagic zone is sometimes called the sunlit zone because it receives enough sunlight for plants to grow. Epi means ‘on’ or ‘nearby’. The epi-pelagic zone goes from the surface down to 200m. The temperature varies greatly from +40°C down to -3°C. Both phytoplankton (plants) and zooplankton that larger organisms like marine mammals and fish feed on, live in this zone.

 The meso-pelagic zone is sometimes called the twilight zone because only a very little light gets down to that depth, not enough for plants to grow. Meso means ‘middle’. The meso-pelagic zone goes from 200m to 700m below sea level. The temperature varies from 4-5°C and the pressure is much higher and increases with depth. No phytoplankton (plants) live in this zone.

The bathy-pelagic zone is sometimes called the midnight zone and extends from 700m to the bottom of the ocean. 'Bathy' means deep. No light penetrates this zone. Ninety percent of the ocean is in this zone. Water pressure is very intense and the temperature varies from 0 to 6°C.



Pressure

Pressure is a force. It is a force that pushes against a surface.

  • A strong force over a small area gives high pressure.
  • A strong force over a larger area gives less pressure.

The air around planet Earth is pushed down by gravity to give us air pressure. The air pressure near sea level is 1 bar. That means the air is pushed against our bodies at a pressure of 1 kg per square centimetre. Sometimes 1 bar is called 1 atmosphere.

When you dive into the ocean a big change occurs. You feel the increase in pressure on your ears. This is called water pressure or sometimes hydrostatic pressure. This is the force of the water pushing against a surface. The deeper you go the greater the pressure of the water pushing down on you.

Every 10m you go down, the pressure increases by 1 bar.

In the deepest ocean the pressure is as high as an elephant balanced on a postage stamp, or the equivalent of one person trying to support 50 jet aeroplanes!

Buoyancy

Buoyancy is the ability of something to float. Corks and plastic bottles have buoyancy and stay afloat. Heavier objects like stones have less buoyancy and sink.

Why do some objects float? Why do some objects sink? It all has to do with density

Density is how much stuff there is in a certain amount of space. You can measure the density of an object if you know its mass and its volume.

  • Mass is the amount of stuff in something and is measured in grams (gm)
  • Volume is the amount of space the object takes up and is measured in millilitres (ml).

Density = mass/volume = grams/millilitre = gm/ml

  1. Really dense objects like gold have a high density. Gold has a density of 19gm/ml
  2. Really light objects like wood have a low density. Wood has a density of 0.7gm/ml
  3. Water has a density in between gold and wood. Fresh water has a density of 1gm/ml

Gold has a density higher than water so it sinks. Wood has a density lower than water so it floats.

Do you float or sink in water? If you sink – and most people do – then your body is more dense than water. Life jackets are less dense than water so when we wear them they help us float.

Watch this YouTube video on density

I’m thinking … imagine you had an object that floated. If you could make its volume smaller but keep its mass the same, could you make it sink? Read on …

The Cartesian Diver

The Cartesian Diver is a demonstration of buoyancy. It shows a small ‘diver’ going up and down because of a change in water pressure.

You can make your own Cartesian Diver:

  1. Find a small glass tube, open at one end. Partly fill with water. Close the other end with something like blue tak.  This is your diver. It has an air bubble inside it.
  2. Place the diver in a larger flexible container such as a two litre soft-drink bottle. Fill the bottle completely with water and put on the lid. The diver should float with its head just above the surface. You may need to add or remove water to make the diver float near the surface.
  3. When the diver floats near the surface it is said to be positively buoyant
  4. Now press the outside of the bottle inwards. This will increase the pressure inside. The increased pressure causes the diver to sink to the bottom. The diver is now negatively buoyant. When the pressure is released, the diver rises back to the surface.

Wow! Why does this happen?

Well .. at first the diver has enough air in it to make it float near the surface. It is positively buoyant.

When you press the sides of the drink bottle the water pressure inside the bottle increases. This increased pressure pushes everything inside the bottle including the air bubble inside the diver. The volume of air in the diver is reduced. The mass of the diver is the same but its volume is less. Density = mass/volume. The volume goes down so the density of the diver increases. It sinks!



An Argo Float is a Cartesian Diver

An Argo Float is able to float and sink because it is like a Cartesian Diver. The density of the Argo Float is changed by reducing the volume of air inside it.

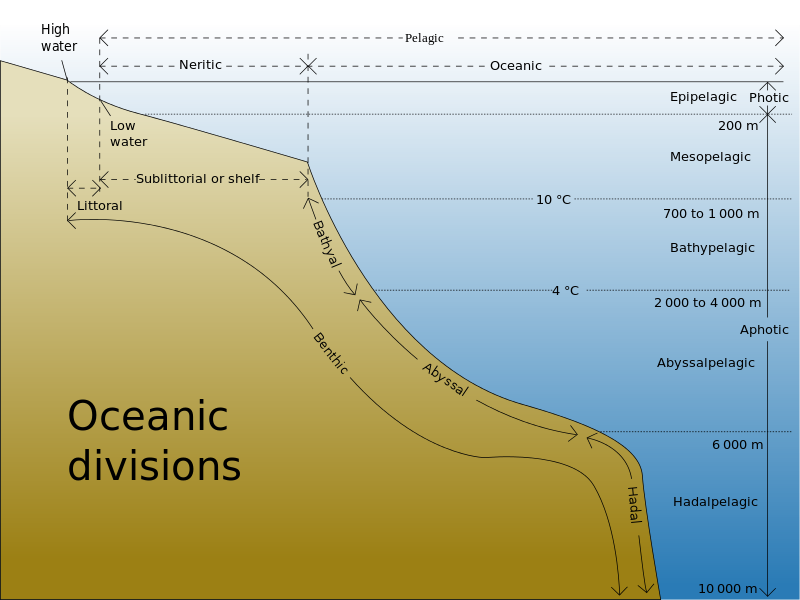

The ocean is made up of different layers. Image source

,

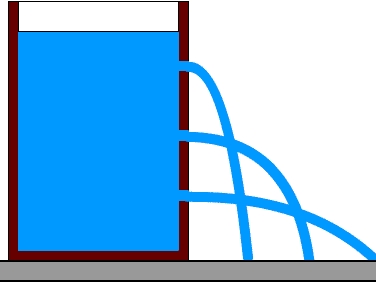

This is a demonstration of water pressure: pressure near the surface is less than the pressure deeper down. Image source

,

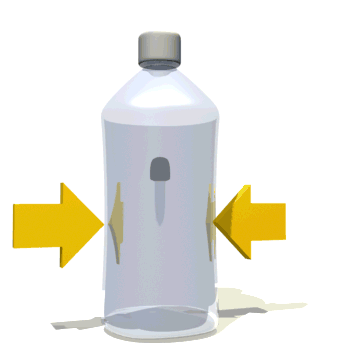

Animated demonstration of a Cartesian Diver. Image source: was waydownsouth on wikispaces.

,

The Cartesian Diver. When the plastic bottle is squeezed, water pressure inside the bottle increases, the air bubble inside the diver gets smaller reducing the volume of the diver. Because Density=Mass/Volume, Mass is the same, volume less = higher density. The diver goes down. Image source

Next step learning: find out how SCUBA divers are able to change their buoyancy
